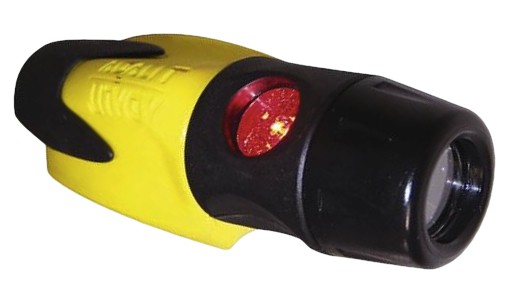

ADALIT L10

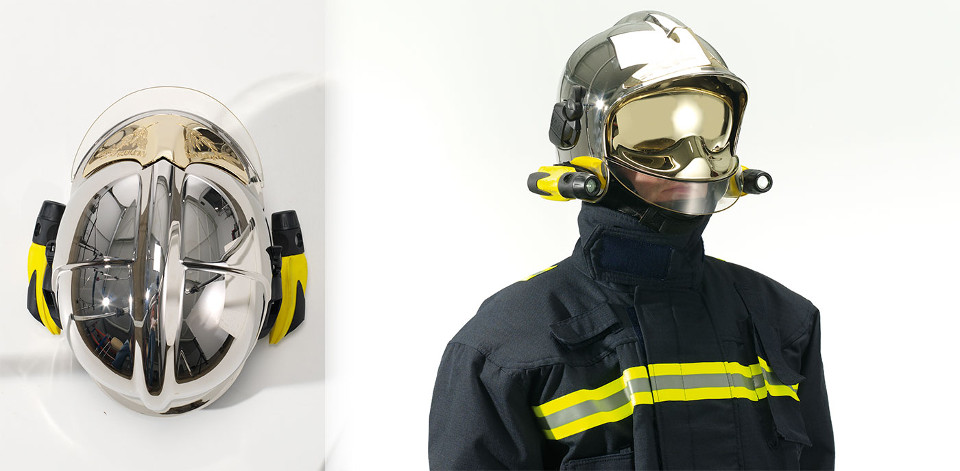

The first rechargeable torch specifically designed for fire fighting helmets, ADALIT L-10, is a powerful hands free lighting tool, and also a beacon to highlight the firefighter position. Ultra light and with a design fully integrated in the intervention helmet, the torch ADALIT L-10 combines LED technology with the last generation li-ion battery to offer unique features and increase the firefighter safety and comfort.
Features
- White high intensity LED for lighting.
- Red high intensity LED flashes to highlight the user position.
- Rechargeable ultra light li-ion battery.
- Indication of the light duration and the battery level.
- Low battery warning.
- Made of thermoplastic resin of high resistance to shocks, extreme temperatures, liquids and corrosive substances.
- Safety certification for use in potentially explosive atmospheres with category 1 & 2 (zones 0, 1 & 2 for gas; zones 20, 21 & 22 for dust).
- Helmet clips available for a variety of helmet types.
Functional Features
HELMET TORCH ADALIT L-10
| EUROPEAN STANDARD | CODE ATEX | II 1 GD Ex ia IIC T4 Ex iaD 20 IP65 T85&C II 2 G D EEx ia IIC T4 IP65 T85&C |
|---|---|---|
| CERTIFICATE | L.O.M. 06ATEX2057 X | |
| FUNCTIONAL FEATURES | WEIGHT | 180 gr. |
| MEASURES | 156x56x48 mm. | |
| LIGHT DURATION | Normal Mode: >3 H Battery Saving Mode: >6 |
|
| POSITIONING FUNCTION | Flashing High Intensity Red LED | |
| BATTERY LEVEL INDICATION | Flashes when switching the light on | |
| LOW BATTERY LEVEL WARNING | Flashes at the end of the discharge 15 minutes before battery is empty | |
| LIGHTING SOURCES | TYPE | High Intensity LEDS |
| LUMINOUS FLUX | White LED: 135 lm. Red LED: 27 lm. |
|
| BATTERY | TYPE | Li-ion |
| NV. | 3,7 V | |
| ACCESORIES | FIREFIGHTING HELMET CLIP | |
CHARGER
| EUROPEAN STANDARD | PROTECTION LEVEL | IP54 | |
|---|---|---|---|
| MARKING | CE,e9 | ||
| FUNCTIONAL FEATURES | CHARGING DURATION | 5h | |
| DISCONNECTION END OF CHARGE | Automatic | ||
| CHARGE INDICATION | Red LED: charging Green LED: charged |
||
| Electric connection |
|
||
| TYPES & MEASURES (lenght x height x max. wide) |
SINGLE | 100 x 28 x 102 mm | |
| FOR 2 TORCHES | 185 x 28 x 102 mm | ||
| FOR 3 TORCHES | 270 x 28 x 102 mm | ||
| FOR 4 TORCHES | 355 x 28 x 102 mm | ||
| FOR 5 TORCHES | 440 x 28 x 102 mm | ||
| FOR 40 TORCHES | 970 x 70 x 880 mm |
For orders or more information please contact us at Phone: +40 244 522 020, E-mail: sirrocco@sirrocco.ro or using the contact form.
